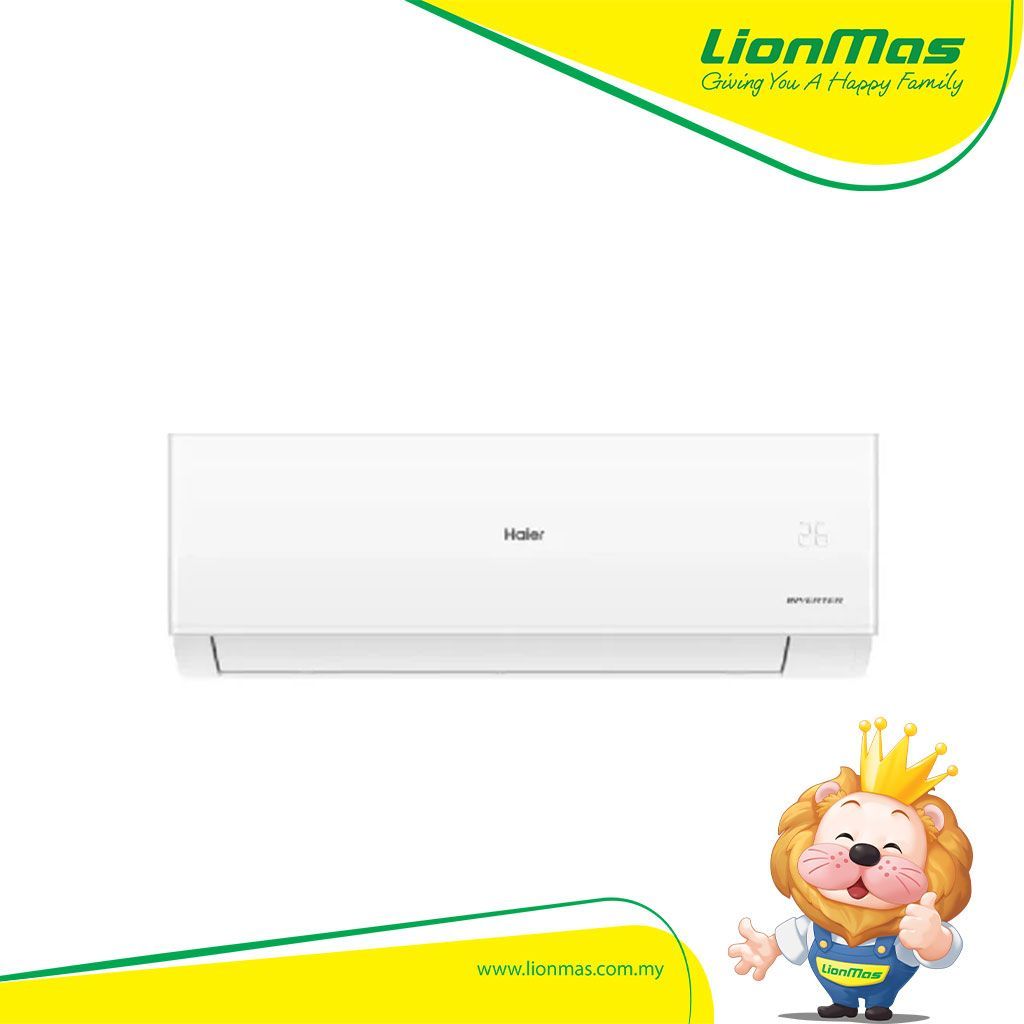

Haier 1.5HP UV R32 Ray Inverter Air Conditioner UVC Sterilization, Smart Clean, Triple Strong Airflow HSU-13VQC22

Specifications

Compressor

Type:

Inverter

Model

Indoor/Outdoor:

HSU-13VQC22

Capacity

Capacity (W):

3663?1020-4000?

Capacity (Btu):

12500

Power input (W) Cooling:

1160

CSPF:

4.95

Star Rating:

4

Running current (A) Cooling:

6.3

Power supply (Ph/V/Hz):

1/220-240/50

Air circulation (m³/h):

700

Moisture removal (10¯³m³/h):

1.6

Refrigerant:

R32

Refrigerant pipe (mm) Liquid side diameter:

6.35

Refrigerant pipe (mm) Gas side diameter:

9.52

INDOOR

Net dimension (mm) W/D/H:

805/200/292

Package dimension (mm) W/D/H:

874/270/363

Net weight (kg):

8.4

Gross weight (kg):

10.5

Noise [dB(A)] (Hi/Mid/Lo/So):

40/37/33/29

OUTDOOR

Net dimension (mm):

700/245/544

Package dimension (mm):

819/320/592

Net Weight (kg):

20.6

Gross Weight (kg):

23

Noise [dB(A)]:

51

Max Pipe Length(m):

15

Max Pipe Height(m):

10

Chargless Piping Length(m):

5

Amount of additional Refrigerant (g):

20

Amount of Gas(g):

540

Power Supply:

indoor

Metering Device:

capillary tube
